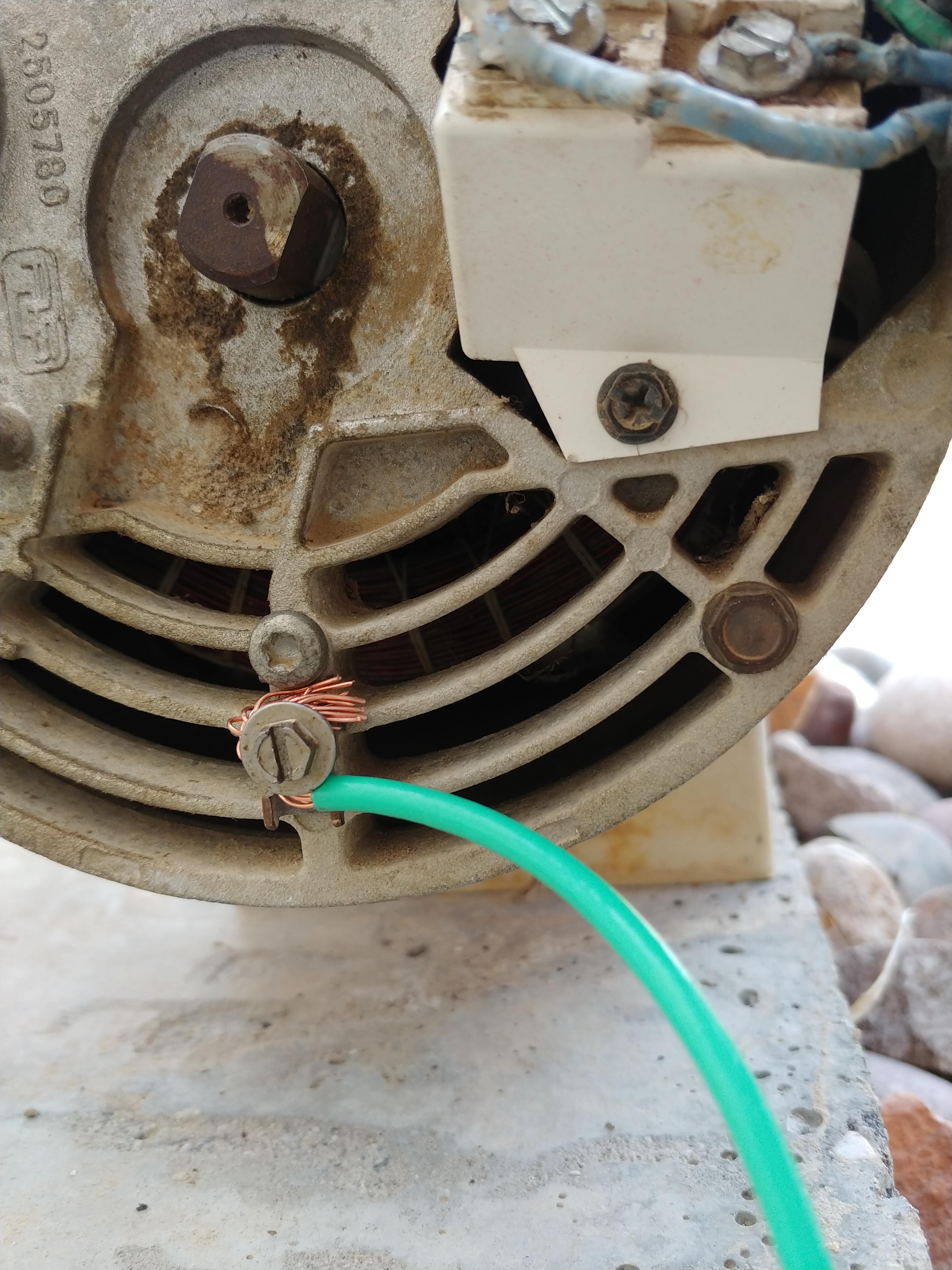

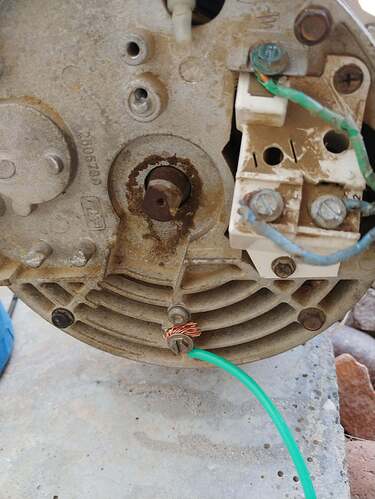

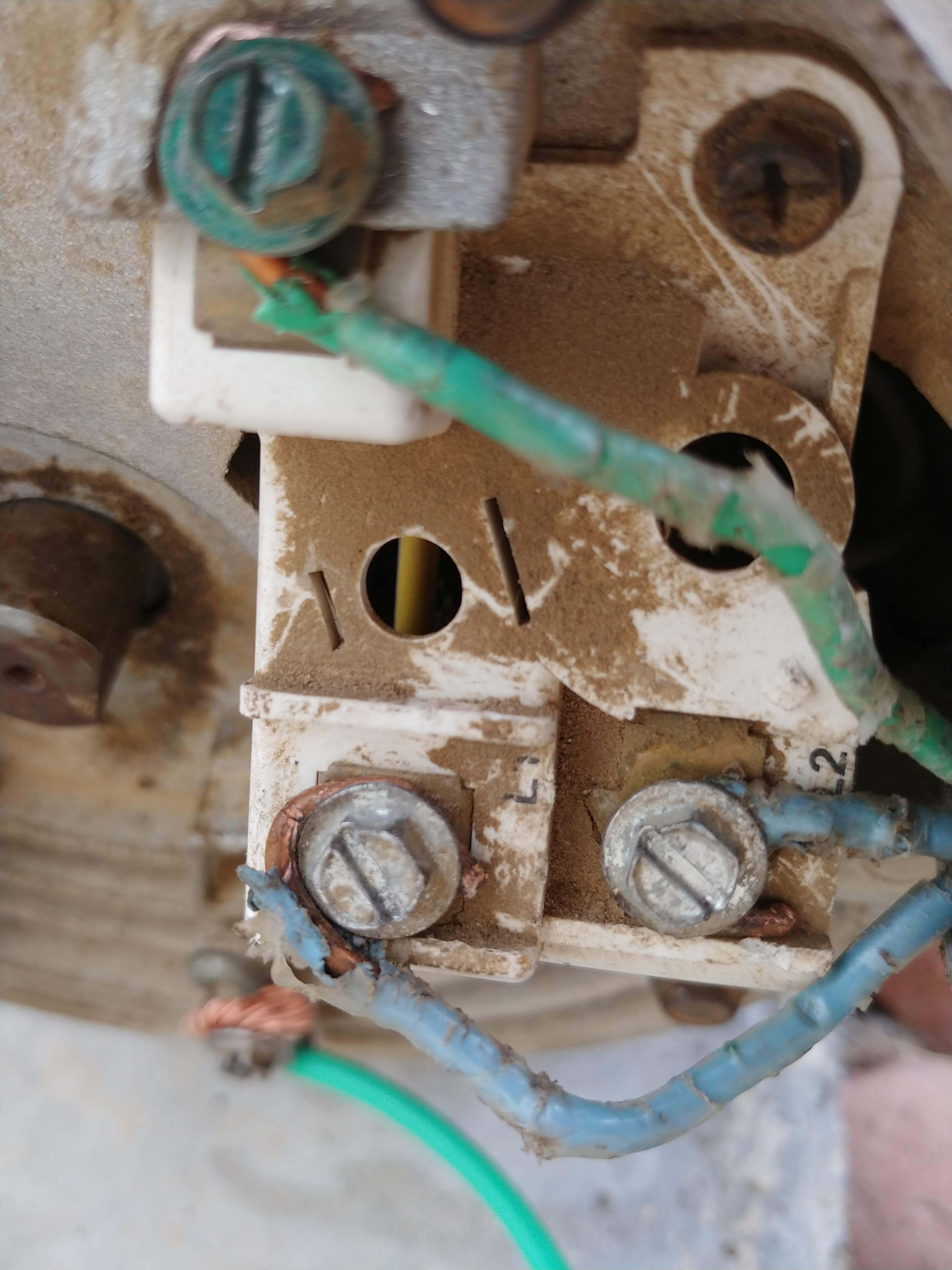

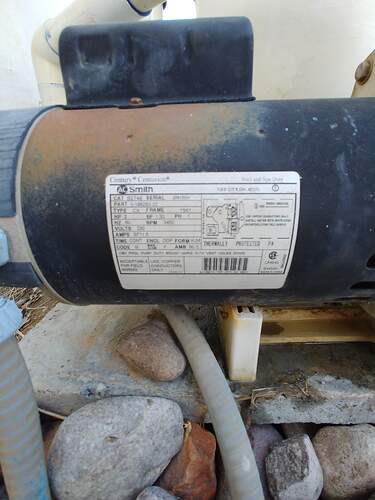

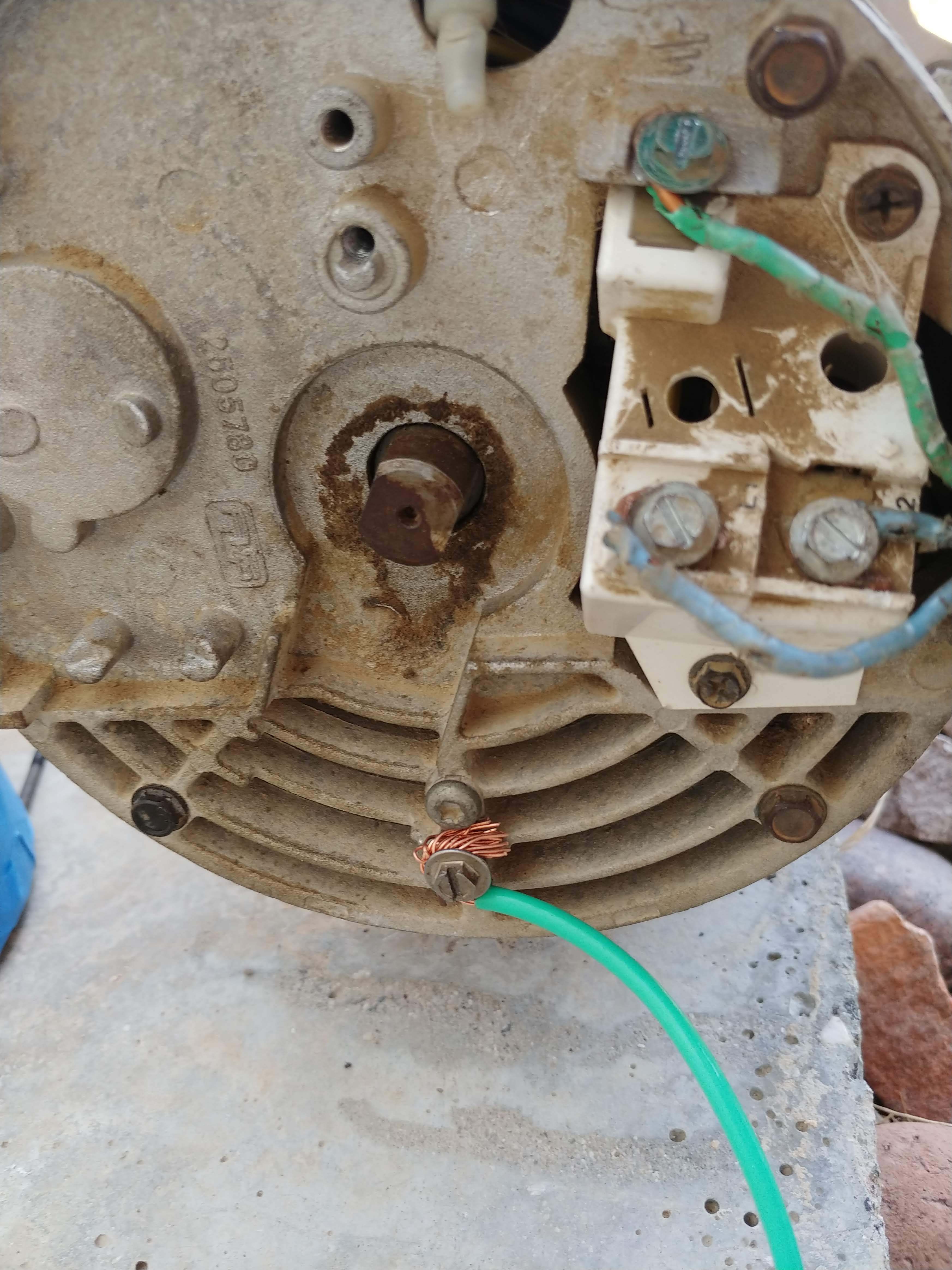

how to wire my pool pump see pics. not working in this connection

Pool Equipment
1

3492×4656 684 KB
3120×4160 598 KB
3492×4656 495 KB
3492×4656 1.02 MB

2

You have it wired correctly. If the motor is receiving 230v and it’s not running, it may be time to replace the motor.

The replacement is model B2748. Click Here to View the B2748 Motor

3

Thanks for your help with this issue I found out I had a bad capacitor. I’m replacing it and pray that takes care of the issue.

4

A bad capacitor is a common issue. Good luck!
