American Products Ultra Flow Pump assemply

Pool Equipment
1

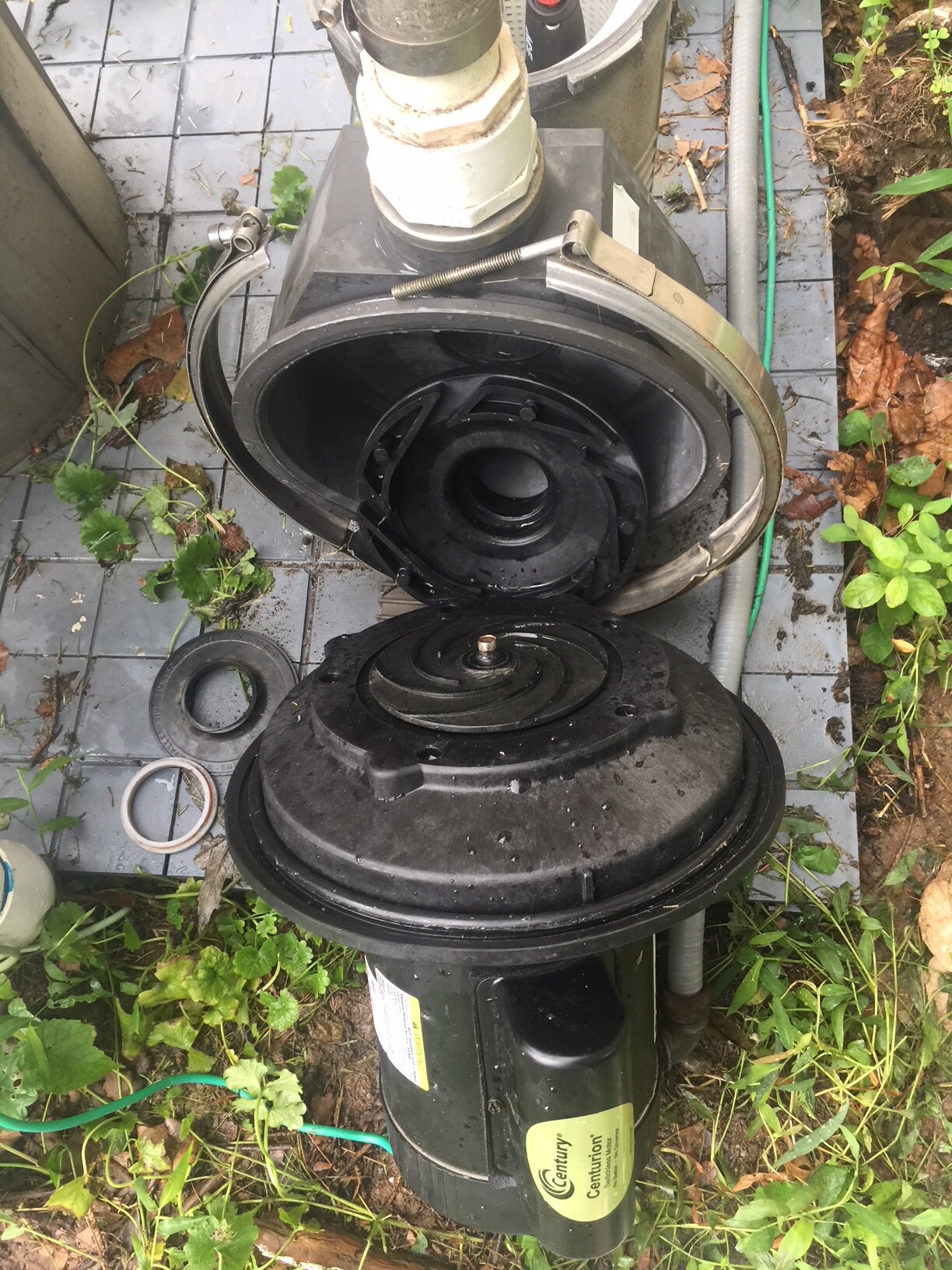

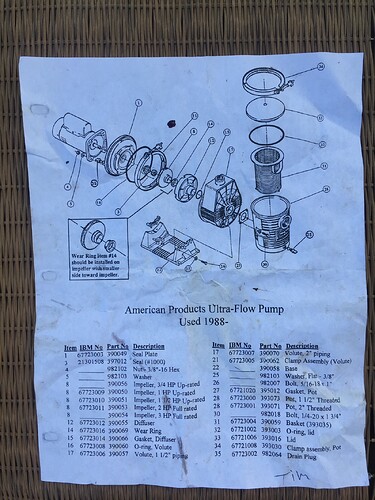

I have everything i think I’m confused about making the final connections please see pictures and I would like to talk to someone? 267-266-2105. Thanks Todd

1224×1632 475 KB
1224×1632 711 KB
1224×1632 607 KB
1224×1632 598 KB

2

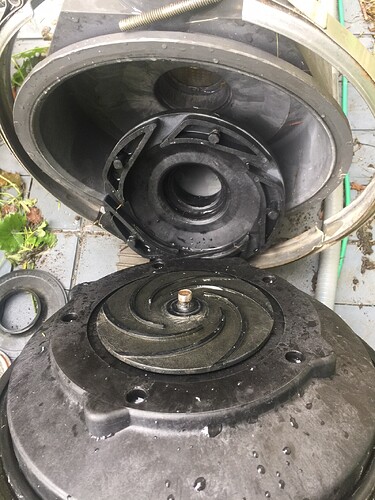

My question is where do those 2 parts on the left go?

Thanks

Todd

3

I also can not get a tight seel when I put it back together?

4

Hello Todd - If you need to speak with someone on the phone, call 407-834-2200. We have techs available 9am-6pm eastern.

5

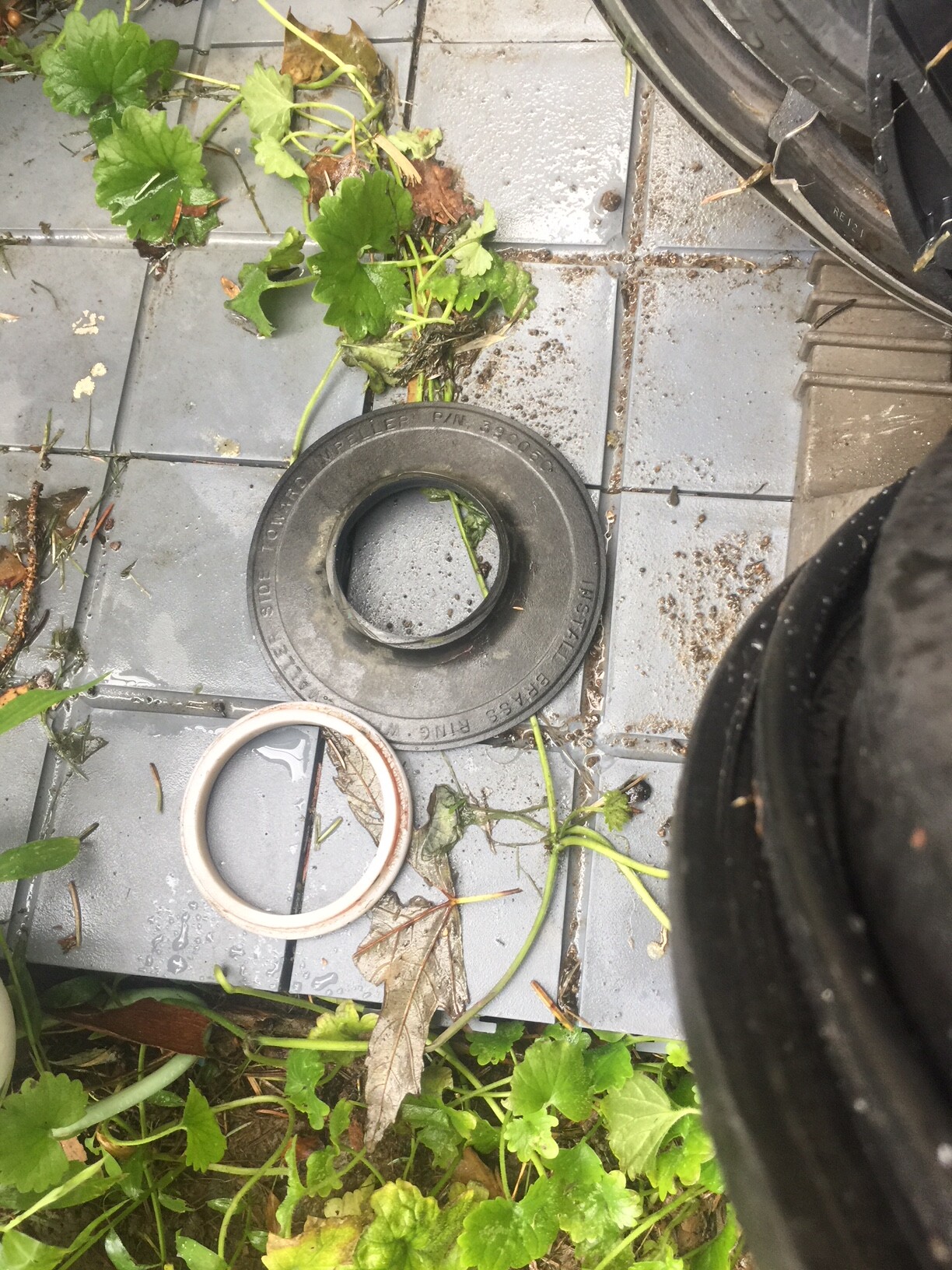

The white part looks like the wear ring (key 14) and that would slip over the nose of the impeller (key 8). The impeller looks broken. The black part looks like it may be the face of the impeller.
